Sine Sweep Testing: A Practical Guide to Vibration Analysis
Learn sine sweep vibration testing fundamentals: control methods, crossover frequency, FRF analysis, and practical applications for engineers.
When I first heard about sine sweep, I thought it was just another vibration test. Eight years later, I can tell you it’s the backbone of understanding how structures respond to real-world vibrations. Let me walk you through what sine sweep testing really means and how to approach it like a seasoned engineer.
Sine Sweep Testing and Why Should You Care?
Sine sweep testing is a frequency response analysis method where we apply sinusoidal excitation across a range of frequencies to understand a structure’s dynamic behavior. Think of it as systematically “tickling” your structure at different frequencies to see where it gets excited.
But here’s what many engineers miss: sine sweep isn’t just about finding resonances. It’s about quantifying exactly how bad things can get when your product encounters its natural frequency in the field.
Understanding Low-Frequency Control: The Displacement Challenge
At low frequencies—especially below 10 Hz—controlling acceleration becomes problematic. Why? Because achieving high acceleration at low frequencies requires massive displacements that could exceed your shaker’s stroke limits.
Here’s how vibration controllers handle this challenge:
- Displacement Control: Below the crossover frequency, controllers track actual displacement using sensors like LVDTs or lasers
- Acceleration Control: Above the crossover, accelerometers take over to maintain the desired g-level
This dual-control approach ensures we don’t damage equipment while still achieving meaningful test results across the entire frequency spectrum.

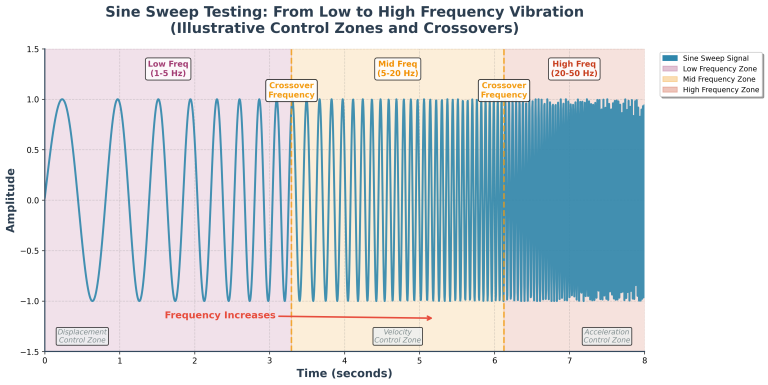

The Critical Crossover Frequency: Where Control Modes Switch
The crossover frequency—typically around 10-15 Hz—marks the transition between displacement and acceleration control. Understanding this transition is crucial for interpreting your test results correctly.
Consider this example: with a 1.0-inch peak-to-peak displacement limit and a 12g acceleration target, the crossover occurs at approximately 15.3 Hz. Below this frequency, you’re not actually achieving 12g—the acceleration ramps up linearly following the equation a = (2πf)² × X.
Why Logarithmic Sweep Rates Matter
Most sine sweep tests use logarithmic frequency progression. This approach spends more time at lower frequencies where each cycle takes longer, ensuring adequate data collection across the spectrum. It’s not just a convenience—it’s essential for capturing low-frequency behavior accurately.
Interactive Sine Sweep Visualization
Adjust the controls below to see how frequency, amplitude, and sweep speed affect the sine wave pattern in real-time:
Tip: Lower frequencies create wider waves, higher amplitudes increase wave height, and faster sweep speeds create more dynamic frequency changes over time.
Sine Sweep Visualization
Understanding how frequency, amplitude, and sweep patterns affect vibration testing signals:
Wide wavelength, smooth oscillation
Moderate wavelength, typical testing frequency
Tight wavelength, rapid oscillation
Key Sine Sweep Concepts:
- Frequency: Higher values create more cycles per unit time
- Amplitude: Controls the peak displacement or acceleration
- Sweep Rate: How quickly frequency changes during testing
- Logarithmic Sweep: Spends more time at lower frequencies
💻 View on desktop for interactive controls and real-time visualization
From Modal Analysis to Real-World Response: Understanding FRF
Here’s a truth that took me years to fully appreciate: modal analysis tells you where your structure can vibrate, but Frequency Response Function (FRF) tells you where it will vibrate under actual loading.
The FRF quantifies the relationship between input excitation and output response across frequencies:
$$FRF(ω) = Output Response / Input Force$$
This gives you real displacement values—not just normalized mode shapes. When a client asks, “How much will this vibrate at resonance?”—FRF provides the answer.
Practical FRF Interpretation
Let me share what I’ve learned about reading FRF plots effectively:
- Peak amplitudes: These occur at natural frequencies, amplified by the factor 1/(2ζ) where ζ is damping ratio
- -3 dB bandwidth: Use this to estimate damping—narrower peaks mean lower damping and higher amplification
- Off-resonance behavior: Equally important for understanding operational safety zones
Interactive Frequency Response Function (FRF)
Explore how damping ratio and natural frequency affect system response. Watch the resonance peak change in real-time:
Live Analysis
Damping Effect
Lower damping = higher, sharper peaks. Higher damping = broader, lower response.
Natural Frequency
Shifts the resonance peak left or right. Critical for avoiding operational frequencies.
Q-Factor
Quality factor = 1/(2ζ). Higher Q means more amplification at resonance.
Advanced Considerations for Sine Sweep Testing
Force Location Matters: applying force at a modal node yields minimal response, even at resonance. Always consider where and how you’re exciting the structure—it dramatically affects which modes dominate your response.
Multi-Modal Interactions: real structures rarely have well-separated modes. When natural frequencies cluster, expect complex interactions that simple modal analysis won’t capture. This is where FRF analysis proves invaluable.
Damping Variability: never assume uniform damping across all modes. Higher modes often exhibit different damping characteristics, affecting their contribution to overall response.
Implementing Sine Sweep in FEA Software
Whether you’re using Abaqus, ANSYS, or other platforms, the workflow remains consistent:
- Modal extraction: Identify natural frequencies and mode shapes
- Steady-state dynamics: Apply harmonic loading across your frequency range
- Post-processing: Extract FRF data and assess structural response
Pro tip: Always validate your FEA predictions against physical testing when possible. I’ve seen too many simulations miss critical real-world behaviors.
When to Choose Sine Sweep Over Other Test Methods
Sine sweep testing excels when you need:
- Precise resonance identification and characterization
- Quantitative amplitude response at specific frequencies
- Phase relationship data between input and output
- Validation data for simulation models
For broadband excitation or transient events, consider random vibration or shock testing instead.
Key Takeaways
After eight years in vibration and durability analysis, these are the sine sweep testing principles:
- Understand the crossover frequency to interpret low-frequency results correctly
- Use FRF analysis to quantify actual displacement—modal analysis alone isn’t enough
- Consider force location and direction when exciting specific modes
- Always connect dynamic response to structural integrity through stress analysis
- Validate simulations with physical testing whenever feasible
Remember: sine sweep testing isn’t just about finding resonances—it’s about understanding how your structure behaves across its entire operational spectrum. Master this, and you’ll catch problems before they reach the field.
Finally, if you are interested to learn about vibration analysis, please have a look at : vibration_and_acoustics
